Product Details

Overview

Excel SDR is the miniaturised 2x2 Software Defined Radio (SDR) comes with RF Transceiver and the Xilinx Programmable SoC. You can build your own wireless communication product using EXCEL SDR from RF-to-baseband processing.

Application

- P2P Communication System
- Small cell base stations
- General purpose radio systems
- Unmanned air vehicles etc.,

Dimensions

Size (LxWxH) : 82.5x41x15mm

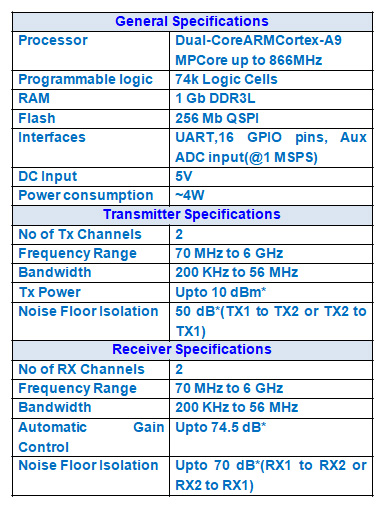

Technical Specifications

Excel Software Defined Radio

Tx Spectrum @ 72MHz



Tx Spectrum @ 895MHz



Tx Spectrum @ 2.4GHz



Tx Spectrum @ 6.0GHz

Product Detail

  • MODEL_NUMBER:
    George L. Perryman
  • DIMENSION:
    The Own Hardware
  • TECHNICAL_SPECIFICATION:
    http://www.abc.com
